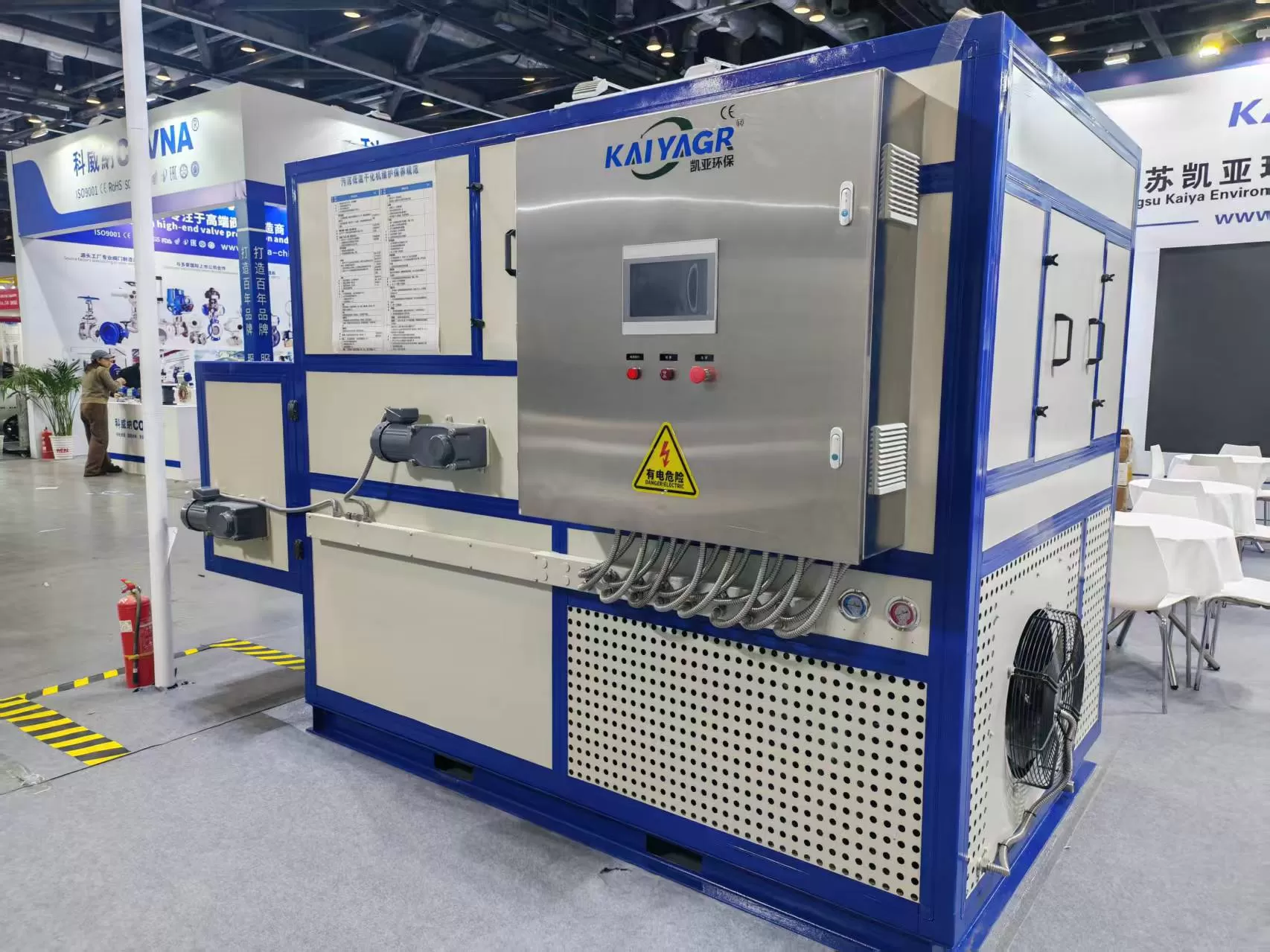

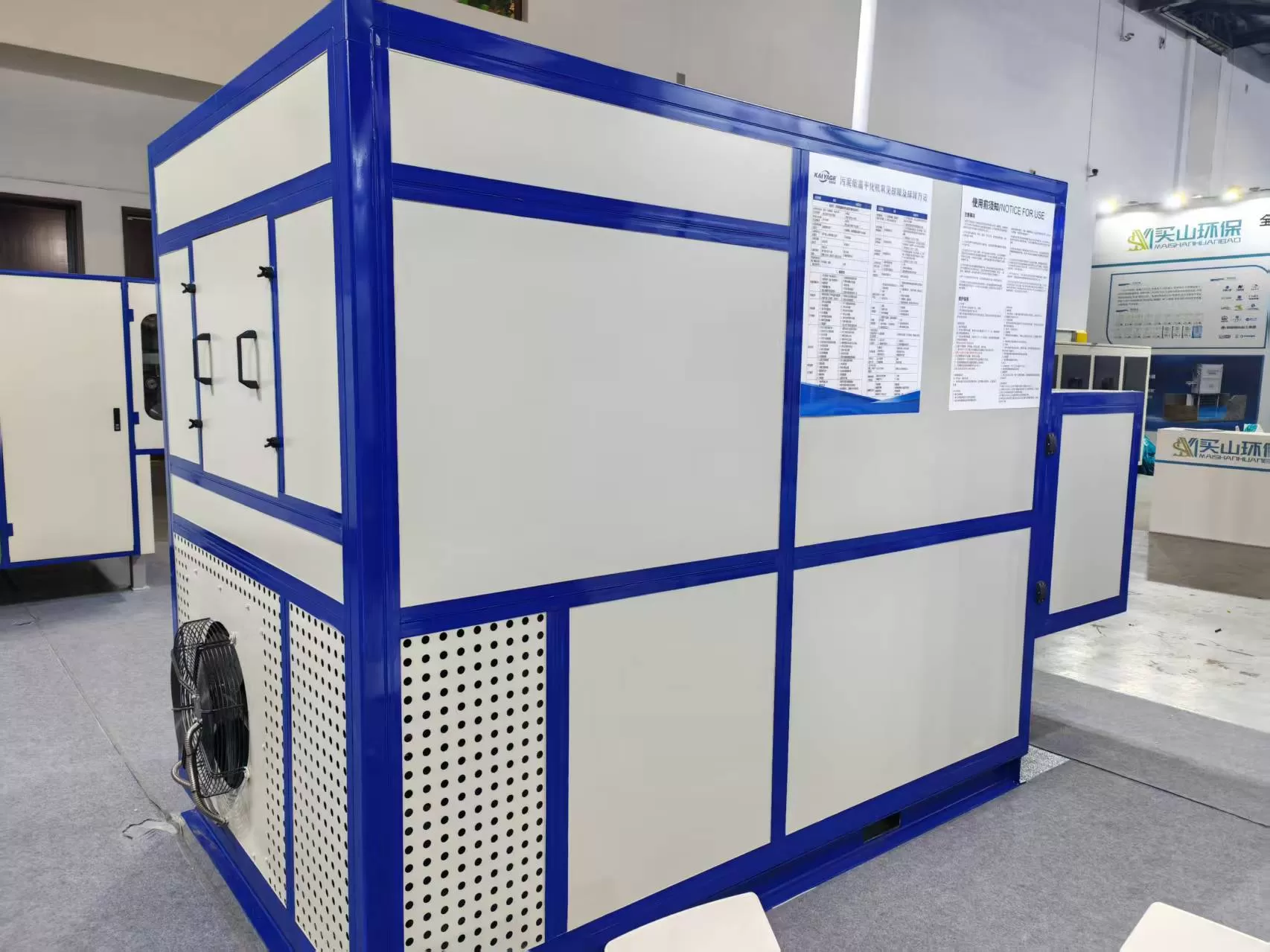

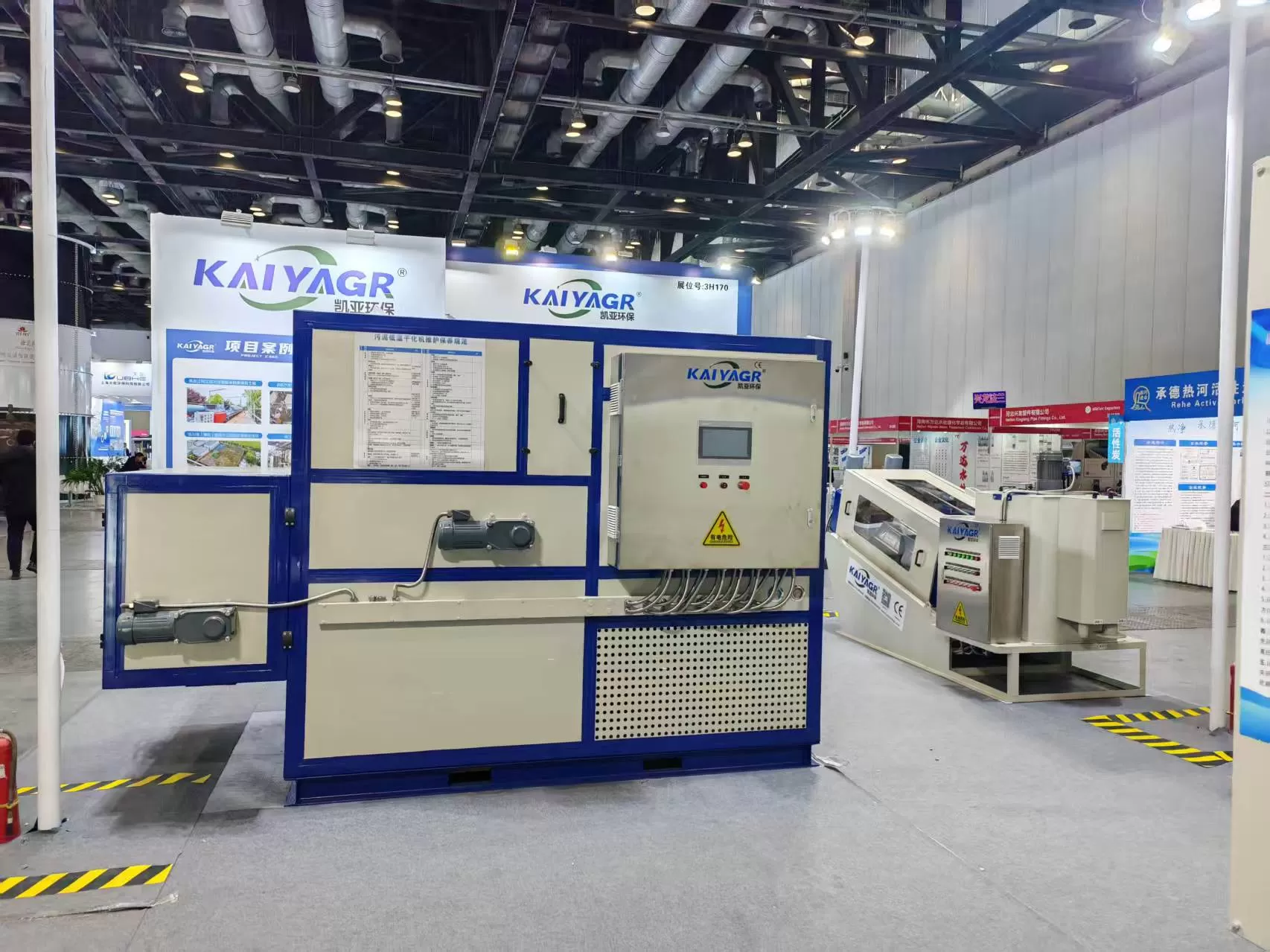

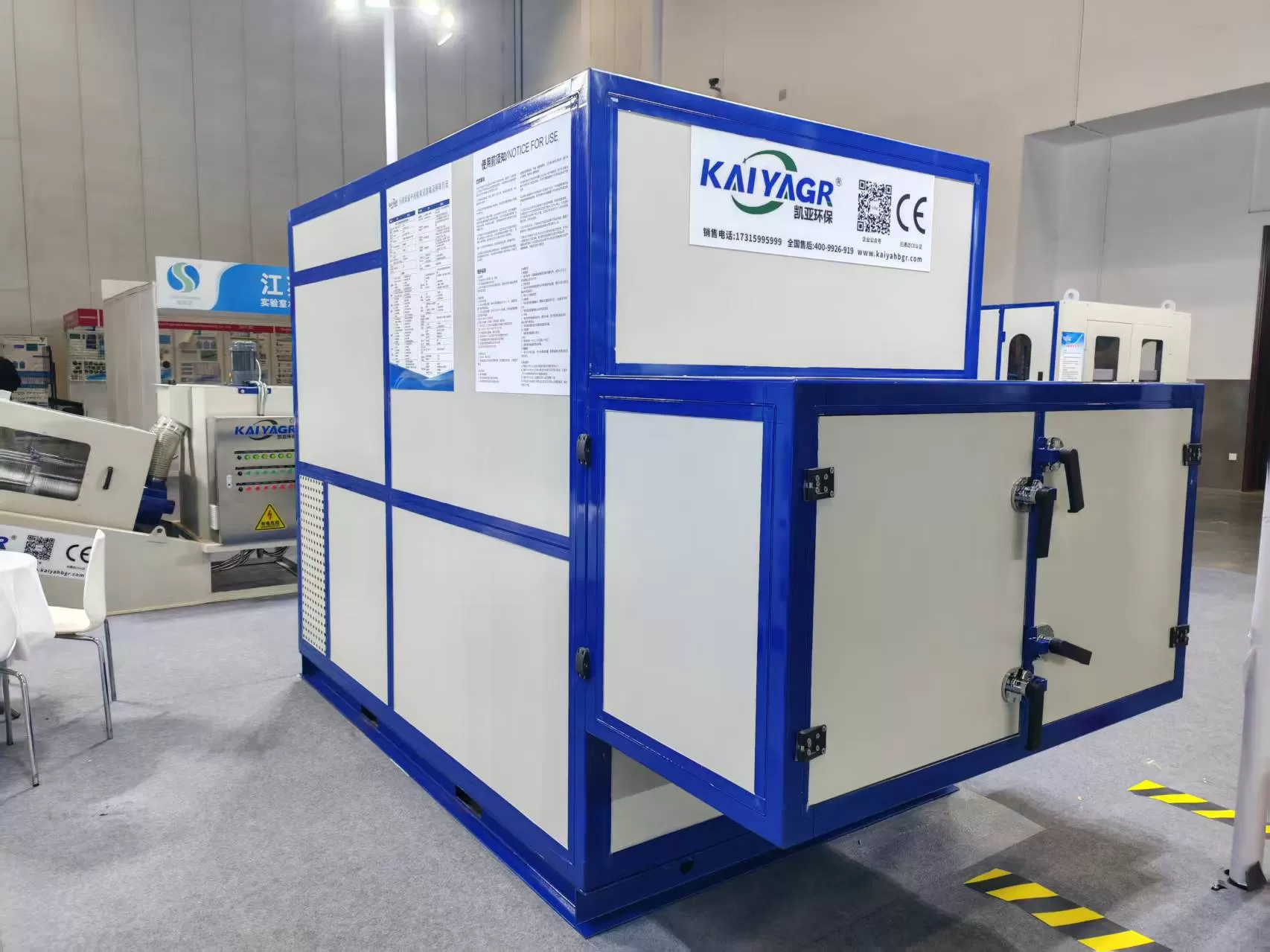

Heat Pump Sludge Low-Temperature Drying Machine
PRODUCT FEATURES:
※ INTEGRATED MODULAR DESIGN
※The compressor, valve and electrical components are designed in independent chambers
※THE SLUDGE DRYING PERFORMANCE IS UPGRADED AGAINAutomatic dust removal and closed air design316L stainless steel two vessel pipeline design
※INTERNET OF THINGS PLATFORM TECHNOLOGY
Description
Kaiya Environmental Protection owns a complete set of sludge drying systems, offering comprehensive solutions forsludge drying, including segmental conveying, storage, and odor treatment. We are dedicated to becoming a cruciapart of sludge reduction processes, initially dehydrating wastewater or thickened sludge to 60-80%, then drying it atow temperatures to a moisture content below 30%, achieving a weight reduction of up to 98%.
Heat pump system: The humid air inside the oven is cooled and dehumidified by the evaporator. Then, the low-temperature, dry air is heated by the condenser. A blower sends this hot, dry air into a mesh belt to dry the sludge. As the hot, dry air passes through the mesh belt, it absorbs moisture from the sludge, converting it into moist, hot air with a humidity level above 50% and a temperature between 40-60 degrees Celsius. This moist, hot air is circulated by a fan, passes through a filter, and enters the finned regenerator and evaporator for further cooling and dehumidification; this cycle repeats continuously. Condensate forms on the evaporator surface and is then discharged into the wastewater tank.
Technical Parameter Table:
Heat Pump Sludge Low-Temperature Drying Machine Forced air cooling | ||||||||||
Model | KY1200FL | KY2400FL | KY3000FL | KY3600FL | KY4800FL | KY6000FL | KY7200FL | KY9600FL | KY6000FL | KY6000FL |
Standard water removal volume/24H | 1000kg | 2000kg | 2400kg | 2900kg | 4000kg | 4800kg | 6000kg | 8000kg | 12000kg | 16000kg |
Standard water removal volume/H | 40kg | 80kg | 100kg | 120kg | 160kg | 200kg | 240kg | 320kg | 480kg | 640kg |
Installed capacity | 25kW | 43kW | 52kW | 62kW | 81kW | 104kW | 118kW | 145kW | 213kW | 288kW |
Standard operating power | 19kW | 37kW | 43kW | 50kW | 69kW | 86kW | 100kW | 121kW | 177kW | 237kW |
Number of heat pump modules | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 4 |
Number of compressor units | 1 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 12 | 16 |
Cooling method | forced air cooling | |||||||||
Shape outline structure/MM | 3310*1860*2286 | 4104*2390*2835 | 4104*2390*2835 | 4404*2590*2835 | 6700*2390*2835 | 6700*2390*2835 | 7300*2500*2835 | 8100*3360*3555 | 11350*3360*3555 | 14600*3360*3555 |
structural style | Integrated assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly |
weight Weight | 2.2ton | 3.3ton | 3.7ton | 4.2ton | 6.0ton | 6.6ton | 7.3ton | 9.2ton | 13ton | 16.0ton |
Heat Pump Sludge Low-Temperature Drying Machine Water cooling | ||||||||||||||||
Model | KY1200SL | KY2400SL | KY3000SL | KY3600SL | KY4800SL | KY6000SL | KY7200SL | KY9600SL | KY14400SL | KY19200SL | KY24000SL | KY28800SL | KY33600SL | KY38400SL | KY43200SL | KY48000SL |
Standard water removal volume/24H | 1200kg | 2400kg | 3000kg | 3600kg | 4800kg | 6000kg | 7200kg | 9600kg | 14400kg | 19200kg | 24000kg | 28800kg | 33600kg | 38400kg | 43200kg | 48000kg |
Standard water removal volume/H | 50kg | 100kg | 125kg | 150kg | 200kg | 250kg | 300kg | 400kg | 600kg | 800kg | 1000kg | 1200kg | 1400kg | 1600kg | 1800kg | 2000kg |
Installed capacity | 25kW | 42kW | 52kW | 62kW | 80kW | 100kW | 116kW | 144kW | 211kW | 282kW | 350kW | 417kW | 488kW | 556kW | 623kW | 691kW |
Standard operating power | 19kW | 36kW | 43kW | 50kW | 68kW | 82kW | 94kW | 120kW | 175kW | 234kW | 290kW | 345kW | 404kW | 465kW | 515kW | 571kW |
Number of heat pump modules | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
Number of compressor units | 1 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 |
Cooling method | Water cooling | |||||||||||||||
Cooling water flow rate | 1.4 | 2.7 | 3.4 | 4 | 5.4 | 6.8 | 8.1 | 9.5 | 14.3 | 19.1 | 23.9 | 28.6 | 33.4 | 38.2 | 42.9 | 47.7 |
Cooling water pipe diameter | DN32 | DN32 | DN32 | DN40 | DN40 | DN40 | DN40 | DN50 | DN65 | DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 |
Shape outline structure/MM | 3310*1860*2286 | 4104*2390*2835 | 4104*2390*2835 | 4404*2590*2835 | 6700*2390*2835 | 6700*2390*2835 | 7300*2590*2835 | 8100*3360*3555 | 11350*3360*3555 | 14600*3360*3555 | 17850*3360*3556 | 21100*3360*3557 | 24350*3360*3558 | 27600*3360*3559 | 30850*3360*3560 | 34100*3360*3561 |
structural style | Integrated assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly | Modular assembly |
weight Weight | 2.2ton | 3.3ton | 3.7ton | 4.2ton | 6.0ton | 6.6ton | 7.3ton | 9.2ton | 13ton | 16.0ton | 16.1ton | 16.2ton | 16.3ton | 16.4ton | 16.5ton | 16.6ton |
Aplication：
Using high eficiency heat pump low temperature design, it is efficient and energy saving.It can be widely used in munici.pal, printing and dyeing, paper making, electroplating, chemical industry, leather and other types of sludge drying treat-ment, providing strong technical support for Chinas sludge reduction.
